Produktnummer:
NW00036

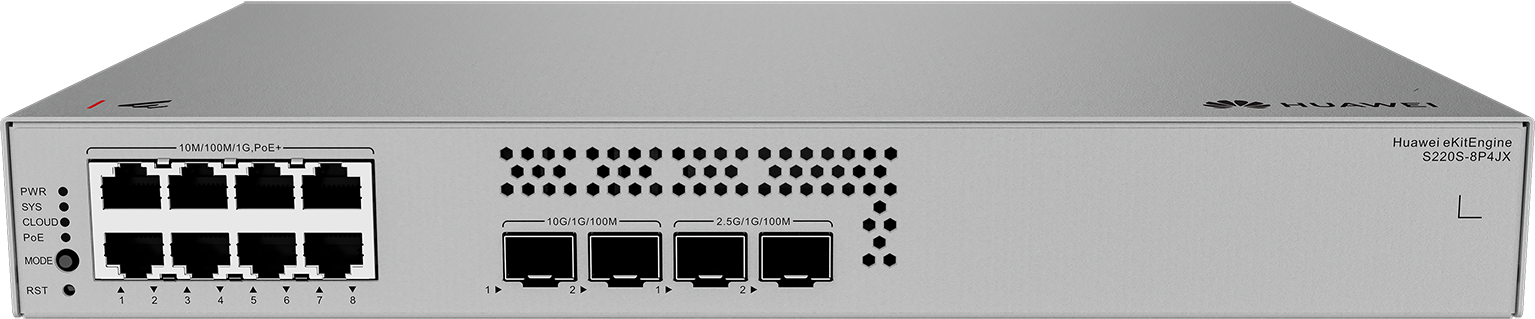

Produktinformationen "Huawei Switch eKit S220S-8P4JX"
Huawei eKitEngine S220S series switches, offering rich uplink and downlink ports, are Layer 2 GE/10GE switches designed for the SME and SMB market.
8 x 10/100/1000BASE-T PoE+ ports, 2 x 10GE SFP+ ports, 2 x 2.5GE SFP ports | Packet forwarding rate: 49 Mpps | Switching capacity: 66 Gbit/s
This device can easily be configured and managed via HUAWEI eKit App.
HUAWEI eKit App is a digital distribution platform that integrates marketing, transaction, service, enablement, and partner operations for numerous distribution partners and enterprise-level users in the enterprise market.
Specifications:
- Certification EMC certification Safety certification Manufacturing certification
- Chassis material Metal
- Static power consumption [W] 13.93
- Dimensions without packaging (H x W x D) [mm] Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 320 mm x 210 mm
- Chassis height [U] 1
- Installation type Rack mounting,Desk mounting,Wall mounting
- Weight without packaging [kg] 2.53 kg
- Typical power consumption [W] 22.73
- Typical heat dissipation [BTU/hour] 77.56
- Maximum power consumption [W] - Without PoE: 23.23 W - Full PoE load: 161.56 W (PoE: 128 W)
- Maximum heat dissipation [BTU/hour] - Without PoE: 79.26 - Full PoE load: 551.26
- MTBF [years] 83.83
- MTTR [hours] 2
- Availability > 0.99999
- Maximum number of physical ports on the entire device 12
- Maximum number of 10GE ports 2
- Maximum number of 2.5GE ports 2
- Maximum number of GE ports 12
- Maximum number of FE ports 12
- Power supply mode AC built-in
- Rated input voltage [V] AC input: 100–240 V AC; 50/60 Hz
- Input voltage range [V] AC input: 90 V AC to 300 V AC; 47 Hz to 63 Hz
- Maximum input current [A] 3 A
- Power supply surge protection [kV] Differential mode: ±6 kV; common mode: ±6 kV
- Ingress protection level (dustproof/waterproof) IP20
- Heat dissipation mode Natural heat dissipation
- PoE Supported
- 100% power consumption [W] 23
- Maximum PoE power consumption [W] 128
- PoE+ power interfaces 8
- Full load PoE power consumption 30W (802.3at) 4
- Full load PoE power consumption 15.4W (802.3af) 8
