Produktinformationen "Huawei Access Point WiFi7 eKit AP673"

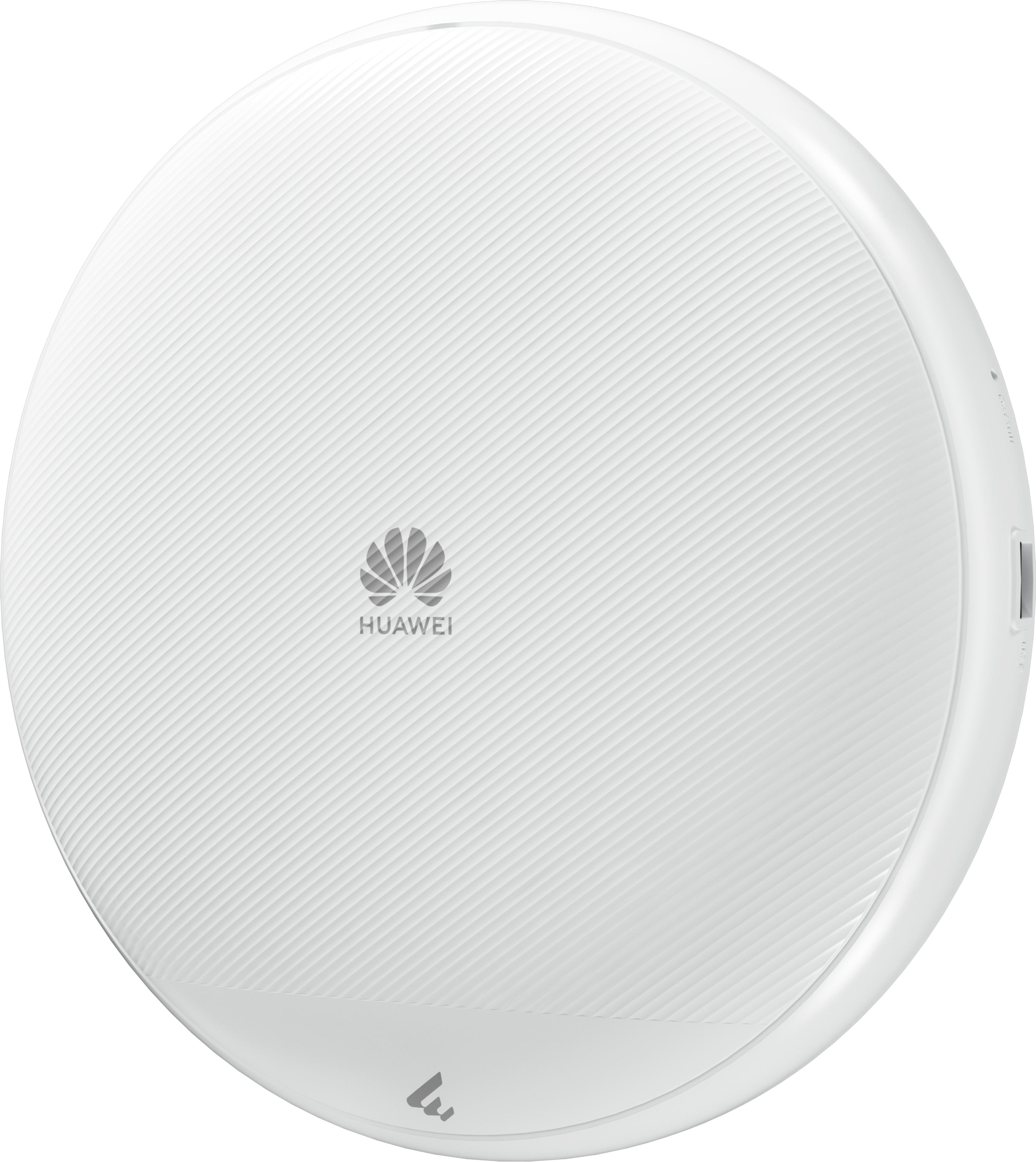

Huawei eKitEngine AP673 is a next-generation indoor access point (AP) that complies with the Wi-Fi 7 (802.11be) standard. It supports eight spatial streams on the 2.4 GHz (2x2 MIMO), 5 GHz (2x2 MIMO), and 6 GHz (4x4 MIMO) frequency bands, delivering a data rate of up to 13.66 Gbps.
It has built-in smart antennas, ensuring always-on signals for users. With the all-new Wi-Fi 7 technology, this AP can greatly improve users' wireless network experience. Compact in size, it can be flexibly deployed and saves customer TCO. These strengths make this AP ideal for indoor coverage scenarios such as small and midsize enterprise office, hospitals, and shopping malls and supermarkets.
You can use the EasyWeb or wireless access controller (WAC) to locally deploy and manage APs, or use the HUAWEI eKit App & SNC platform to remotely manage and maintain APs. In this way, network projects can be handed over or managed together, simplifying network O&M.
This device can easily be configured and managed via HUAWEI eKit App.
HUAWEI eKit App is a digital distribution platform that integrates marketing, transaction, service, enablement, and partner operations for numerous distribution partners and enterprise-level users in the enterprise market.
Specifications:
- Installation Type Wall,Ceiling,T-Rail
- Dimensions without packaging (H x W x D) [mm] Diameter x depth: 220 mm x 45 mm
- Weight without packaging [kg] 0.745 kg
- CPU 4-core, 1.0 GHz
- Memory DDR4 512 MB
- Console port Bluetooth console
- Power supply mode PoE,DC power adapter
- Storage NAND Flash 512 MB
- Rated input voltage [V] 12 V
- Input voltage range [V] DC: 12 V ± 10% PoE: 802.3at/af
- Service port surge protection PoE port: Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B Common mode (8 wires to ground): 4 kV (1.2/50 us, 42 ohms), criterion B

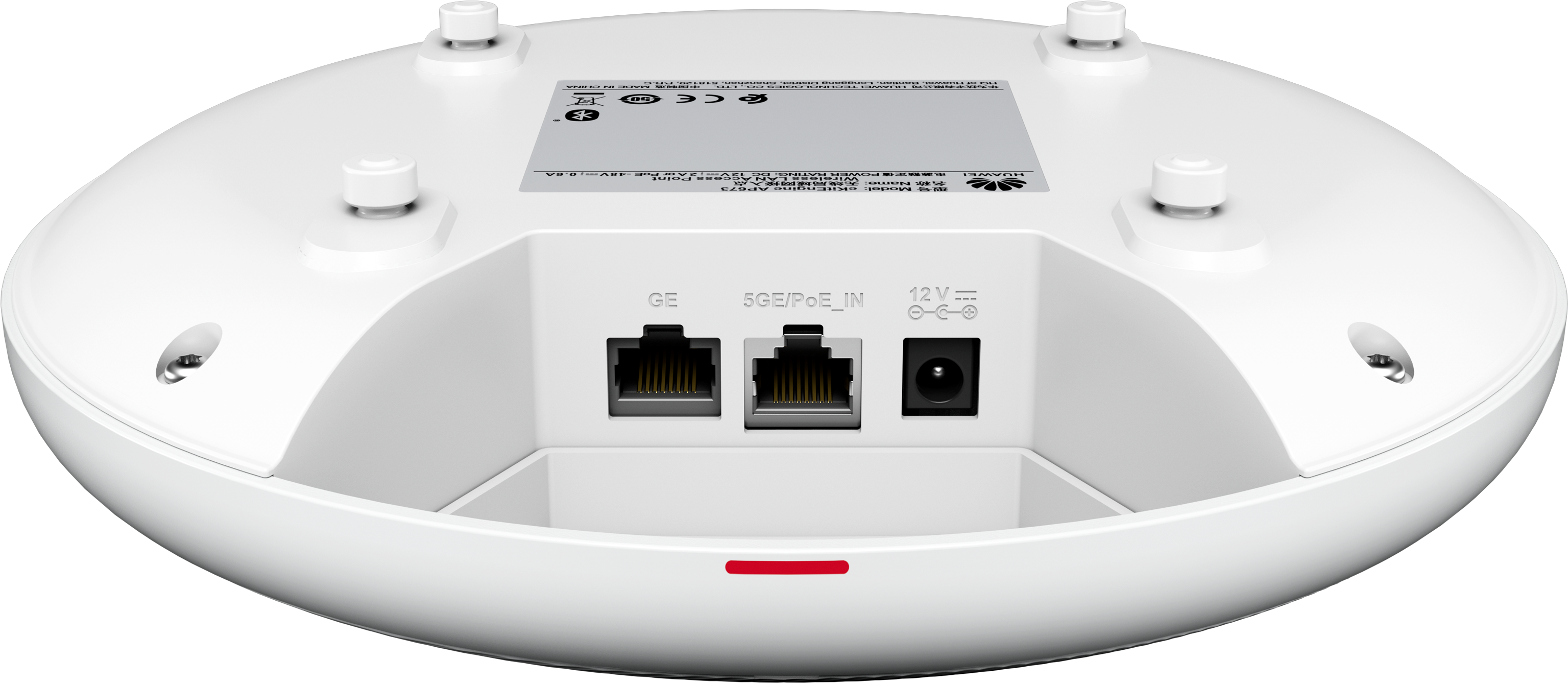

- Maximum number of physical ports on the entire device 5GE (RJ45) x 1, 100M/1000M/2500M/5000M auto-sensing GE (RJ45) x 1, 10M/100M/1000M auto-sensing
- USB USB 3.0 is unavailable currently and will be supported through software upgrade in the future.
- BLE BLE5.2
- Radio number 3
- MIMO spatial streams Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz): 2x2 Radio 2 (6 GHz): 4x4
- Wi-Fi standard 2.4 GHz: 802.11b/g/n/ax/be 5 GHz: 802.11a/n/ac/ac Wave 2/ax/be 6 GHz: 802.11a/n/ac/ac Wave 2/ax/be
- Radio interface Built-in smart antennas
- Antenna gain 2.4 GHz: 4 dBi/chain (peak gain) 2 dBi (combined gain) 5 GHz: 5 dBi/chain (peak gain) 3 dBi (combined gain) 6 GHz: 5 dBi/chain (peak gain) 3 dBi (combined gain) BT: 4 dBi
- Maximum transmit power 2.4 GHz: 20 dBm/chain 23 dBm (combined power) 5 GHz (2x2): 20 dBm/chain 23 dBm (combined power) 6 GHz (4x4): 20 dBm/chain 26 dBm (combined power) BLE: < 10 dBm
- 3G/LTE filte (ACC) Supported
- MTBF [year] 110.878
- MTTR [hour] 2
- Maximum power consumption [W] 21.1 W (excluding USB)
- Maximum heat dissipation [BTU/hour] 66
- 802.3bt power supply description The power supply mode is negotiated to 802.3at. When the 5 W USB port is used, the maximum transmit power of radios 0, 1, and 2 decreases by 3 dBm. Other functions are not restricted.
- 802.3at power supply description The power supply mode is negotiated to 802.3at. When the 5 W USB port is used, the maximum transmit power of radios 0, 1, and 2 decreases by 3 dBm. Other functions are not restricted.
- 802.3af power supply description The power supply mode is negotiated to 802.3af. Wi-Fi service: A maximum of 2.4 GHz (2x2) + 5 GHz (2x2) is supported. The USB is unavailable. Other functions are not restricted.
- DC power supply description No function is limited.
- Operating frequency band 2.4GHz,5GHz,6GHz
- Frequency stability [ppm] +/-20
