Produktinformationen "Huawei Access Point WiFi6 eKit AP265E"

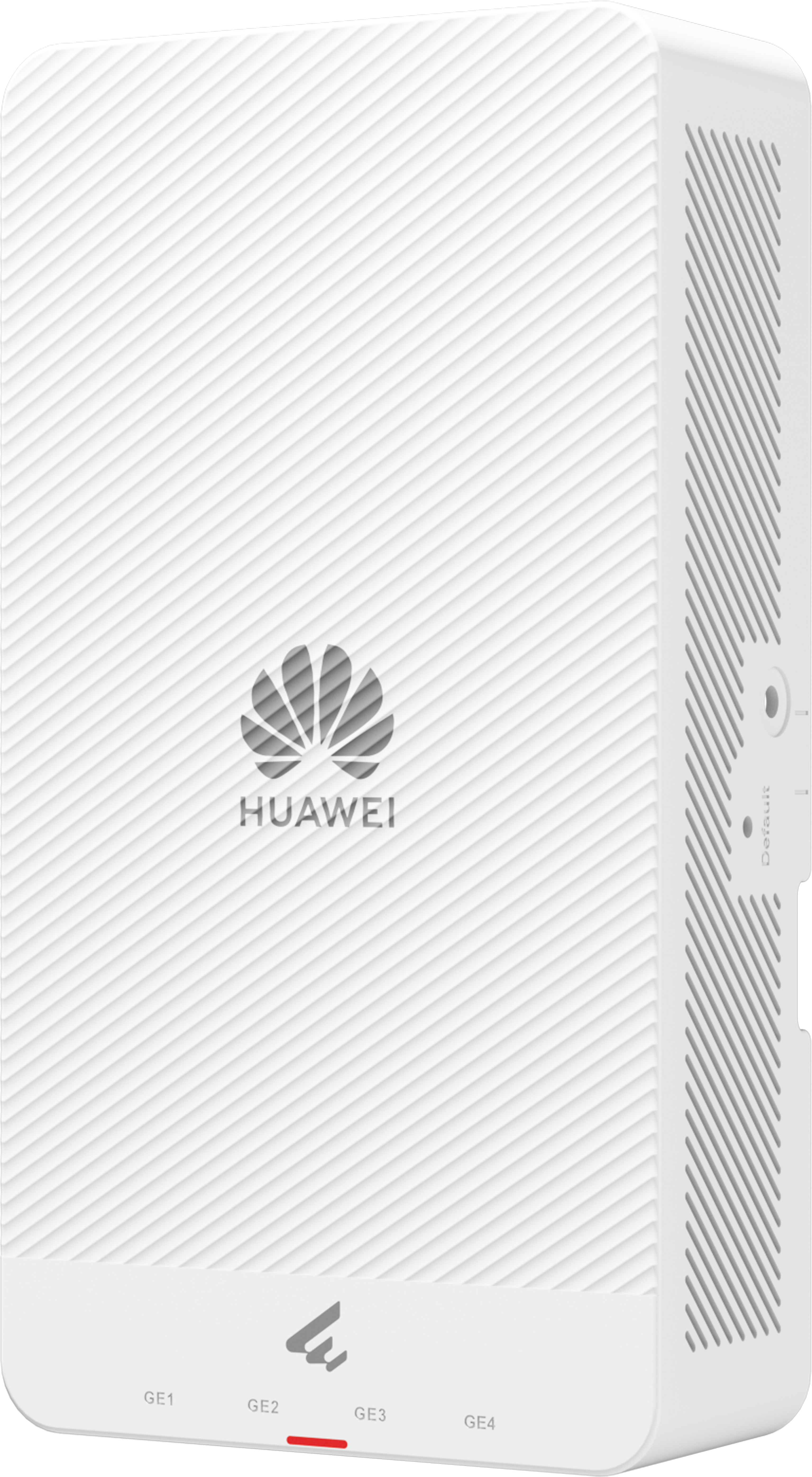

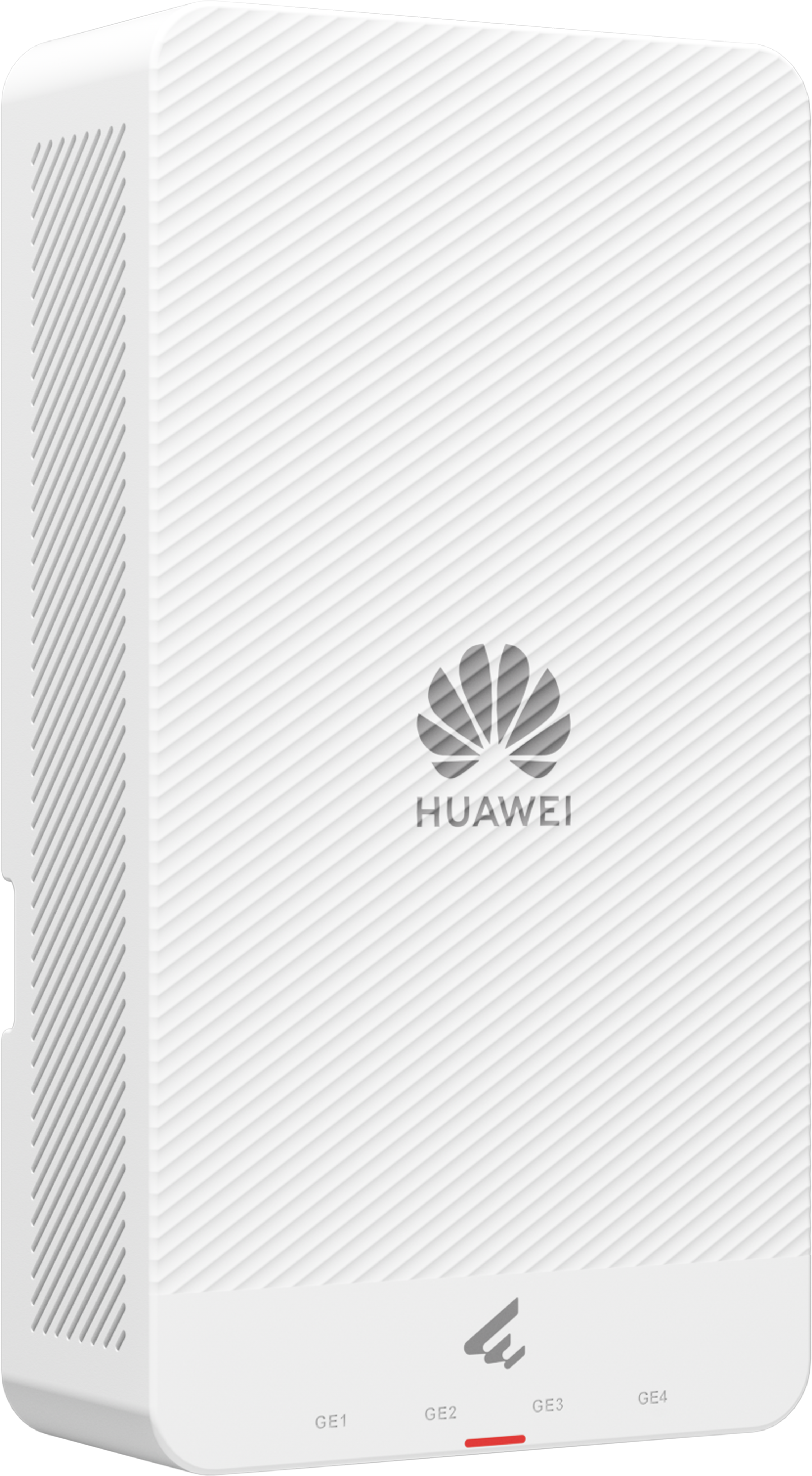

Huawei eKitEngine AP265E is an indoor slim wall plate access point (AP) in compliance with the Wi-Fi 6 (802.11ax) standard. It can simultaneously provide services on the 2.4 GHz (2x2 MIMO) and 5 GHz (2x2 MIMO) frequency bands with four spatial streams, delivering a data rate of up to 2.975 Gbps.

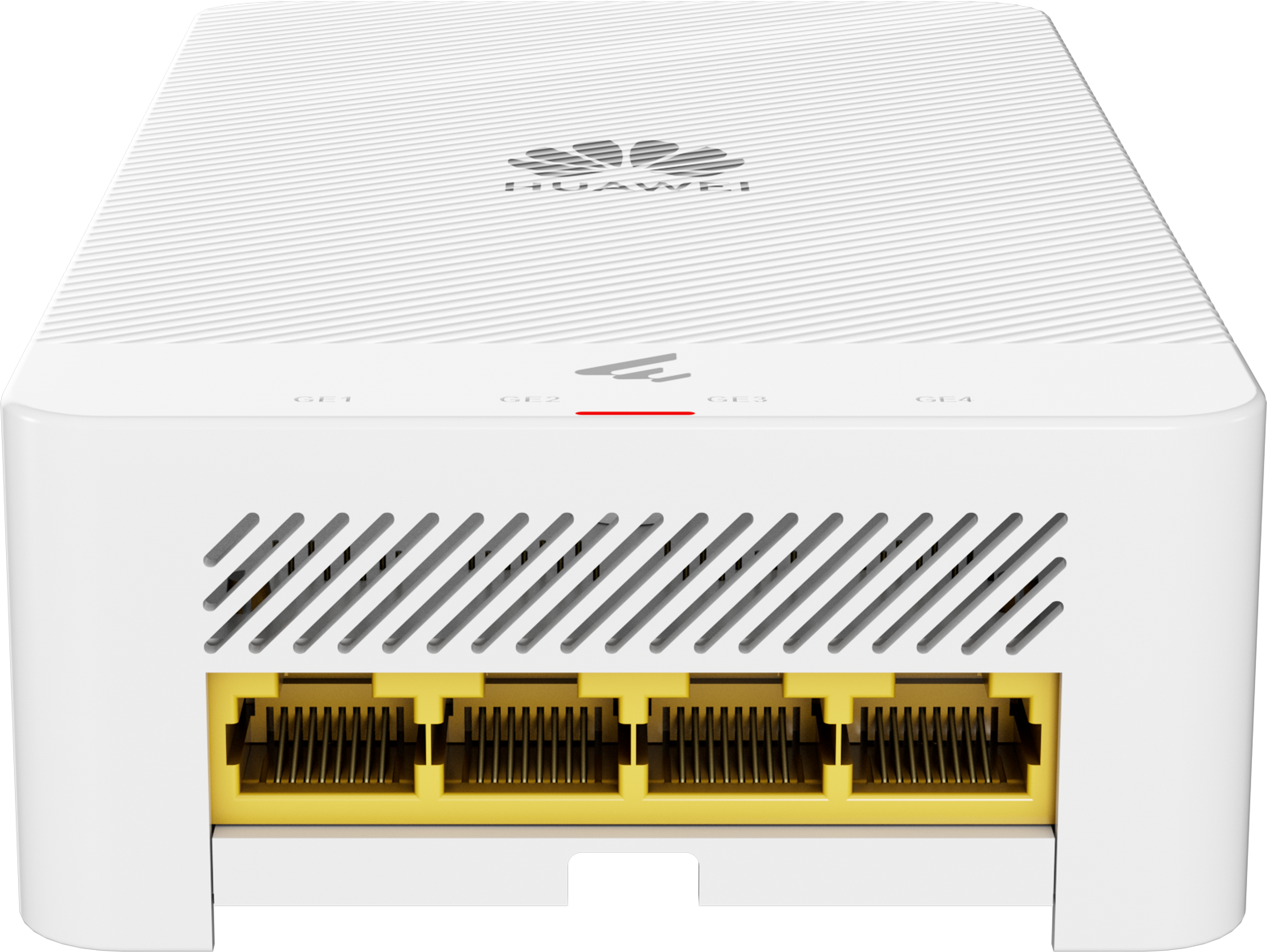

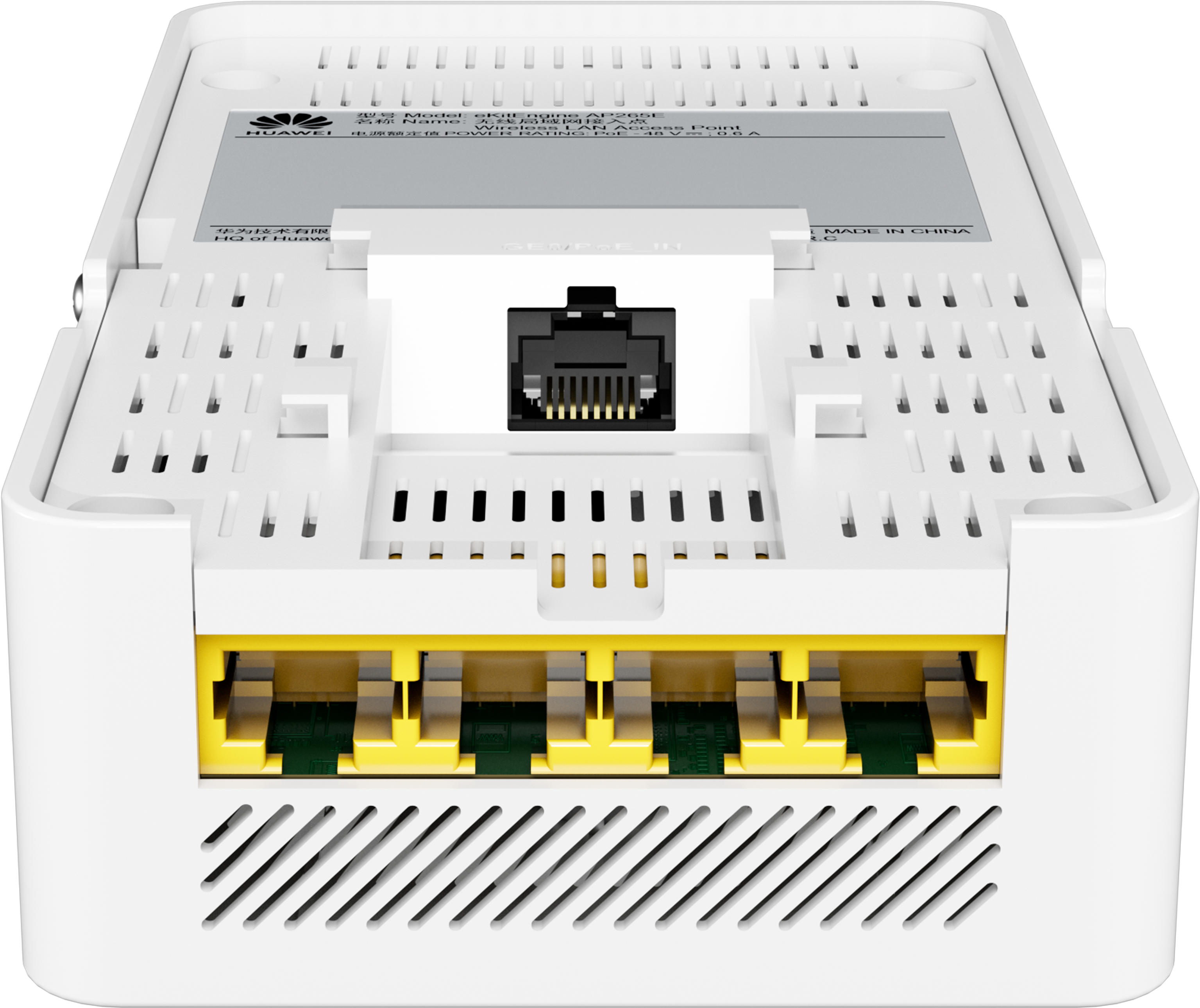

The AP provides one GE uplink port and four GE downlink ports. It can be installed on a desk, wall, ceiling, or junction box, meeting connection requirements in multiple scenarios. The AP is small and easy to deploy, ideal for indoor coverage scenarios such as budget hotels, hospitals, commercial stores, and schools.
You can use the EasyWeb or wireless access controller (WAC) to locally deploy and manage APs, or use the HUAWEI eKit App & SNC platform to remotely manage and maintain APs. In this way, network projects can be handed over or managed together, simplifying network O&M.
This device can easily be configured and managed via HUAWEI eKit App.
HUAWEI eKit App is a digital distribution platform that integrates marketing, transaction, service, enablement, and partner operations for numerous distribution partners and enterprise-level users in the enterprise market.
Specifications:
- Installation Type Desk,Wall,Ceiling,Junction Box
- Dimensions without packaging (H x W x D) [mm] 160 mm x 86 mm x 38 mm
- Weight without packaging [kg] 0.23 kg (
- CPU 2-core, 1.2 GHz
- Memory DDR3: 256 MB
- Console port None
- Power supply mode PoE
- Storage NAND Flash 256 MB
- Input voltage range [V] PoE: 802.3af
- Service port surge protection PoE ports: Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B Common mode (8 wires to ground): 4 kV (1.2/50 us, 42 ohms), criterion B Non-PoE ports: Common mode (8 wires to ground): 4 kV (1.2/50 us, 42 ohms, criterion B
- Maximum number of physical ports on the entire device GE (RJ45) x 5, 10M/100M/1000M auto-sensing
- Radio number 2
- MIMO spatial streams Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz): 2x2
- Wi-Fi standard 2.4 GHz: 802.11b/g/n/ax 5 GHz: 802.11a/n/ac/ac Wave 2/ax
- Radio interface Built-in smart antennas
- Antenna gain 2.4G: 4 dBi/chain (peak value) 2 dBi (combined gain) 5G: 4 dBi/chain (peak value) 1 dBi (combined gain)
- Maximum transmit power 2.4G: 20 dBm/chain 23 dBm (combined power) 5G: 20 dBm/chain 23 dBm (combined power)
- MTBF [year] 289.18
- MTTR [hour] 2
- Maximum power consumption [W] 9.4
- Maximum heat dissipation [BTU/hour] 32.07
- 802.3bt power supply description The negotiated power supply mode is 802.3af, and no function is restricted.
- 802.3at power supply description The negotiated power supply mode is 802.3af, and no function is restricted.
- 802.3af power supply description The negotiated power supply mode is 802.3af, and no function is restricted.
- Operating frequency band 2.4GHz,5GHz
- Frequency stability [ppm] +/-20
